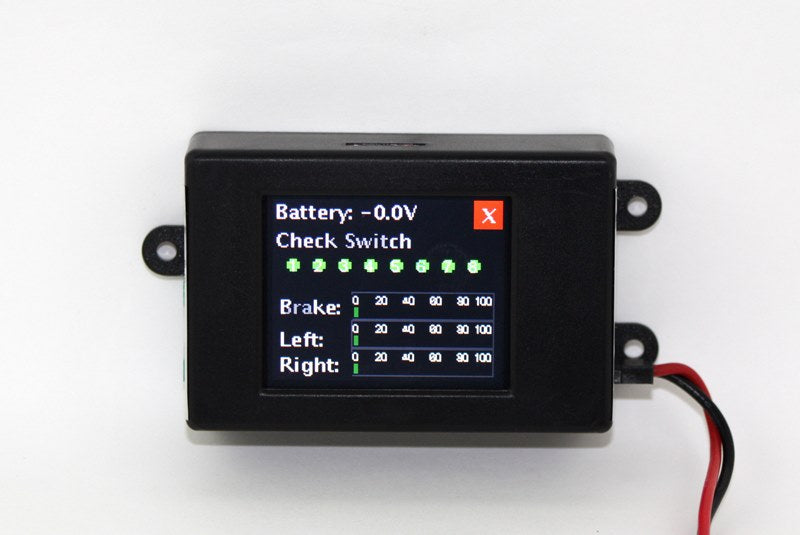

Xicoy LG-15 E-Gear Controller/Sequencer with Steering Gyro
LG-15 Controller for electric landing gear, brakes and doors.
-Direct control of 3 motors in bidirectional mode up to 12 V/5 A. Supports the different motor shut-off control typescurrently available (time, overcurrent and encoder).
-Dual control of electric brakes, full proportional, lineal and adjustable pulsed mode.
-Differential brake mode, to steer the model using the brakes.
-Steering servo processor. Gain, sense and center can be adjusted. The steering servo is centered during retraction.
-Internal Gyro. It can be mixed with the steering servo output and mixed to the differential brakes.
-8 servo outputs for the control of the doors. The endpoints of each servo can be programmed individually. The Servo speed can be programmed independent in the two senses in 0,1 s resolution.
-10 step sequencer. The position of the gears and the position of the 8 doors can be defined independent in each step. Step duration resolution in 0,1 s steps.
-Wide choice of RC inputs. Single RC channel, Dual RC channel, Futaba SBUS, UDI Bus, SRXL Bus, JR Mode A Bus, JETI EX Bus
-Programmable trough integrated color touchscreen.
-uSD card slot to save the settings and upgrade the software
user's manual: http://www.xicoy.com/LG15.pdf
If your gear motor connectors are the small 2pr they will NOT work.
They MUST be a 3pr connector with the red and black wire to the outside, no middle connector. You can use a standard servo end connector to do this.
