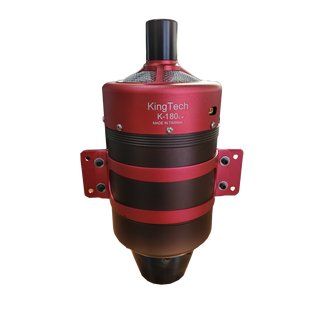

KingTech K180G4+

  • KingTech K-180G4+


    • KingTech G4 utilizes SBus data transmission.
    • Engine/ECU integration, all operating parameters including total run time are all recorded into the engine.
    • The smaller and lighter external Data Relay Module (DRM) is responsible for all data, signal and power transmission.
    • Pump: digital sbus brushless pump
    • A micro USB connector is present for a future connectivity of wireless mobile apps.
    • The G4 features a brushless starter motor for reliability and durability, built-in FOD screen is also integrated.
    • After a run cycle and receiver switched off, GSU will remain on only until cool down completes.



    K-180G4 SPECIFICATIONS

    Diameter: 103mm
    Length: 251 mm
    Weight: 1540 g
    Maximum RPM: up to 130000
    Thrust: 18 KG @ 15°C (40lb @ 59°F )
    EGT: 700°C max
    Fuel consumption: 560g / min ( 17.28oz / min )
    Fuel: Diesel, Jet A1, Kerosene
    Lubrication: 5%
    Maintenance cycle: 25 hr US$300

    G4 MODEL COMPONENTS LIST
    • Engine
    • Data Relay Module (DRM)
    • Ground Support Unit (GSU)
    • Wire Harness and Tubing Set
    • Fuel Pump, Filter and Shout-off Valve
    • Fuel Inlet Attchments
    • Instruction Manual
